Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring

Basic Information
Place of Origin: China
Brand Name: Bomatec
Model Number: UMLRB
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 100 per month
Detail Information
Connection Voltage: 10-30 VDC / 5VDC Current: 10-30 VDC: Max. 150mA, 5 VDC: 200mA
Signal Level: 10-30VHTL/5V TTL Resolution: 0.001mm/0.005mm/0.01mm
Max. Running Speed: 2m/s Output Signal: A, A’, B, B’, Z, Z’
High Light:

linear digital scale

,

optical linear encoder


Product Description

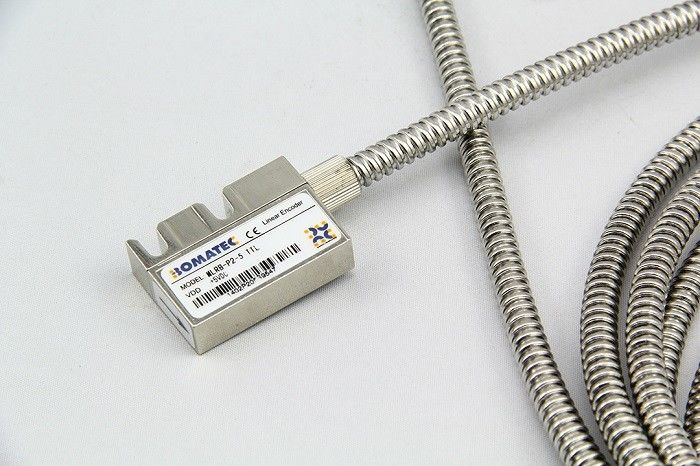

Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring



Introduction



The UMLRB series is a magnetic grating length measuring system, the sensor and the value reading electronics are embedded in one shell, the magnetic scale is stick on a flat plane, when install the scale, the sensor reader head should be kept the position of 0.1-2.0mm to the magnetic scale.



Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring 0



Features



Non-contact measuring.

Large gap range between the signal reader head and the magnetic scale, 0.1-2.0mm.

Measuring length up to 32m.

Resolution up to 0.001mm.

Repeatability up to +/-0.001mm.

High stain resistance capability.



Offering A, A’, B, B’, Z, Z’ signal.



Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring 1



Parameters



Connection voltage

10-30 VDC / 5VDC

Current

10-30 VDC: max. 150mA, 5 VDC: 200mA

Signal level

10-30VHTL/5V TTL

Resolution

0.001mm/0.005mm/0.01mm

Repeatability

+/-0.001mm

Max. running speed

2m/s

Output signal

A, A’, B, B’, Z, Z’

Measuring length

32m(Need larger size please consult to our service dept. )

Sensor / scale distance

Max.2.0mm

Accuracy in 20°C(um)

±(20+20xL), L=measuring length, unit:m

Running temperature

-10 - 70°C

Storage temperature range

-25 - 85°C

Humidity

Without condensation, max. 80%

Protection level

IP67

Sensor mechanical data

UMLRB shell 41 x 11 x 29 mm

Max length 30.0m
Weight 58g
Signal cable

2 x 0.75mm², und 6 x 0.14mm²

Magnetic scale, MP2-xxx-xx

banding redius: min. 60mm

Expanding index a=16x10-6K-1
Length expending: ΔL=LxaxΔa
Dimension 10mm x 1.8mm
Min. curvity radius 150mm
