Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

    • Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
    • Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
    • Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
    • Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
  • Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

    Product Details:

    Place of Origin: China
    Brand Name: UNIMETRO
    Model Number: Delicate

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wood Case
    Delivery Time: 15 working days
    Payment Terms: T/T
    Supply Ability: 5 sets per month
    Contact Now
    Detailed Product Description
    Camera: Industrial Grade 1/2" Color CCD Camera Magnification: 33-195X
    Driving System: Full Close-loop CNC Control, AC Servo Motor, 3 Axis Automatic And Programmable, Joystick Control, Keyboard Control Linear Scale Resolution: 1um / 0.5um / 0.25um / 0.1um For Optional
    Measuring Software: Rational Vue 3D Composite Measuring Software




    3D Composite Vision Measurement Machine Fully-Automatic Programmable




    Introduction

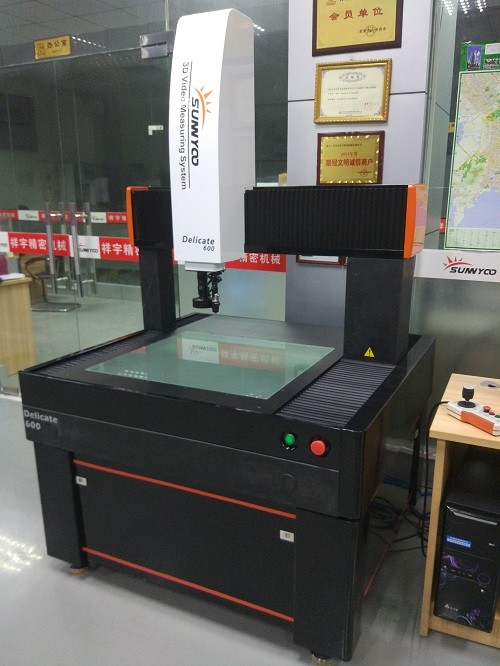

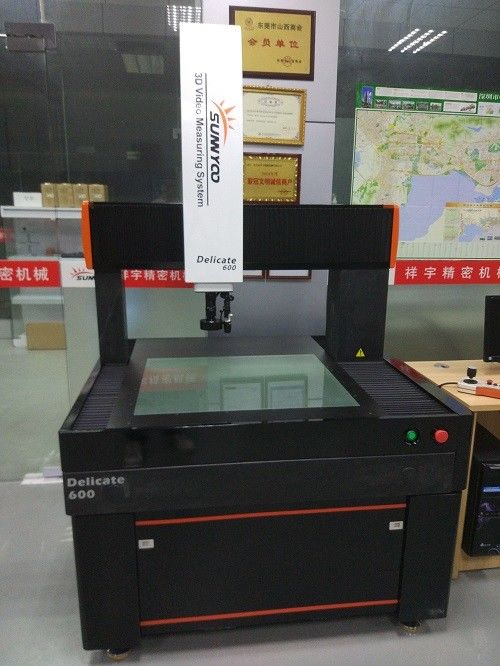

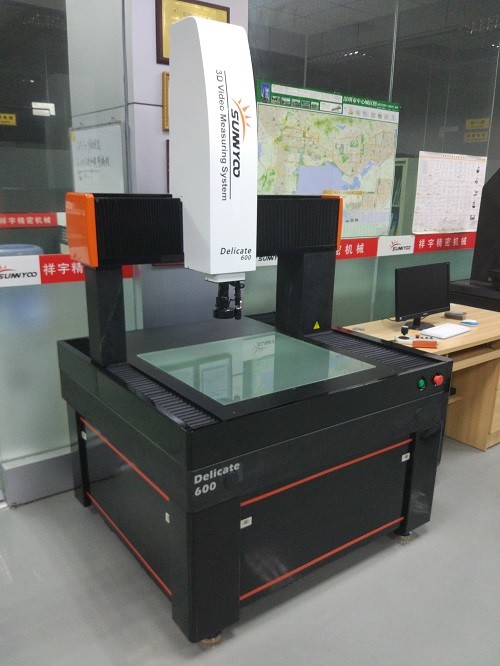

    ● The Delicate series vision measurement machine designed and created by UNIMETRO, is a composite vision measurement machine. It is built based on advanced technology of optics, probing, laser sensor and motion control, which ensures the accuracy, repeatability and motion performance.

    The Delicate series is an outstanding device for accurate inspection, QC, and the production.

    The Delicate series vision measurement machine is a high-quality composite measurement instrument with coordinates measuring and optical vision technology, which is sourced from German structure design.

      Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable






    Features

    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable


    1. 000 grade granite machine base, working table and gantry, to ensure the structure stability of the machine during movement.


    2. Close-loop motion control system, coordinated with the high-accuracy hardware , the machine axis positioning can be fast and accurate.


    3. Renishaw linear scale embedded,to offer high measuring accuracy and stable performance.



    4. Using original Panasonic servo motors to increase the movement speed, ragidity and stability.

    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

    5. High-accuracy linear guideway guarantees the accuracy and stability of the movement.

    6. Multiple option for lens or cameras based on customers' requirements, to satisfy different vision measuring requirement.

    7. RationalVue 3D composite software available:








    Instrument accessories



    2D inspection software + 3D inspection software + CAD reversal software + Form analysing software + contour scanning software + SPC statistical software + off-line programming software + tolerance valuation Software.

    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

    ◆ Open Options

    CCD optical lens – Different solution for option based on different measuring objects, in order to gain faster and more stable image based on different measuring requirements.

    Touch probe       – To achieve 3D measuring

    Laser sensors    – For height, depth and flatness non-contact measuring





    Specification



    Model

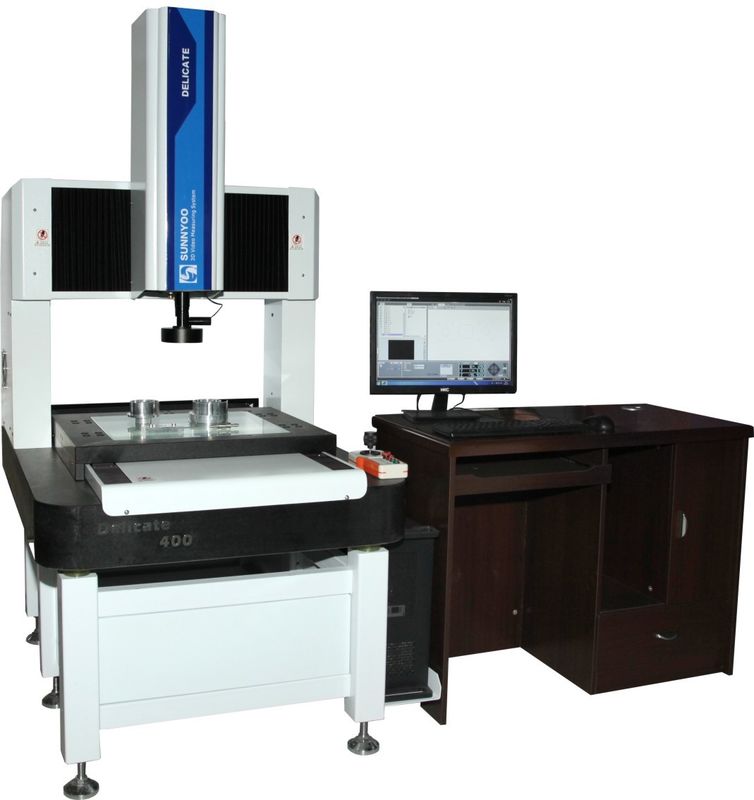

    Delicate 400 CNC Delicate 500 CNC Delicate 600 CNC
    Dimension (mm) 1300*1100*1800 1400*1200*1800 1500*1300*1800
    Measuring range (mm) X 400 500 600
    Y 300 400 500
    Z 200
    Measuring accuracy (um) 3+L/100 5+L/100
    Weight (KG) 1800 2500 3000
    Image and Measuring System Camera Industrial grade 1/2" color CCD camera
    Objective lens Manual detented zoom lens/Autozoom lens 0.7-4.5X/Navitar lens for optional
    Magnification 33-195X
    Vision field 8.1-1.3
    Working distance 108mm
    Measuring resolution 0.001mm
    Linear scale resolution 1um / 0.5um / 0.25um / 0.1um for optional
    Driving System Full close-loop CNC control, AC servo motor, 3 axis automatic and programmable, joystick control, keyboard control
    Measuring software Rational Vue 3D composite measuring software
    Illumination Programmable 8 sections ring LED for surface light, 40 sections ring LED for option, LED parallel contour light, co-axial light for option.
    Power supply 220V±10%(AC)50Hz, grounding with resistance≦4Ω is required
    Working environment Temperature: 18-24°C, Humidity: 30%-75%, Avoid vibration











    About us



    UNIMETRO helps you to build your own business!


    UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.



    Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable



    Our service

    UNIMETRO is devoting to offer the best metrology products and solution,also offer the best after sales service.Free on-line support, free software upgrade and fast reaction of after salesservice ensure the satisfaction of our customers and dealers.



    Global market

    Dealers or distributors all over the world are welcome and we will offer fullsupport in commercial and technical phase.UNIMETRO is always providing products with the best price performance ratio and the best service.



    OEM and special measuring solution

    UNIMETRO is available for OEM service for our distributors.

    Thanks to the professional technical team of UNIMETRO, we are also capable for varies kinds of special measuring solution or devices development, please consult to our engineer if you have such kind of requirement.
