Multifunction Tool Inspection System For Different Shape Cutting Tools

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: ISO, CE
Model Number: RANGER600
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Wooden case+ vacuum package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, , Western Union, MoneyGram, MoneyGram
Supply Ability: 50sets per month
Detail Information
Product Name: Multi-Function Tool Inspection Machine For Different Shape Cutting Tools Model: Ranger600
Applications: Vertical, Taper, Cutter Head, Special-shaped Knife Warrenty: 12 Months
Lineat Scale Resolution: 0.1um Mode: Manual Or Automatic
Working Distance: 90mm Input Format: DXF Files
High Light:

Multifunction Tool Inspection System

,

90mm Tool Inspection System


Product Description

Multi-Function Tool Inspection Machine For Different Shape Cutting Tools




Product Overview

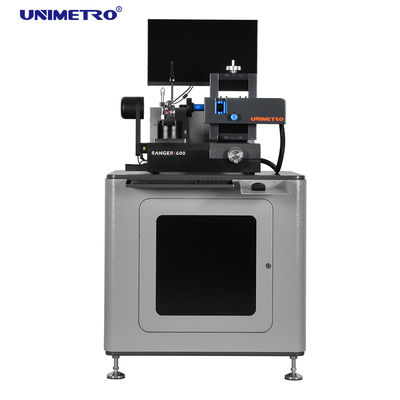

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under a Flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.

Multifunction Tool Inspection System For Different Shape Cutting Tools 0



Cutting Tool Measuring Microscope Parameter:

Model

MT 1000MT

MT 1000A

CCD

2M HD HDMI CCD,1/2Color chip;

Objective lens

0.5x continuous zoom HD lens with zoom ratio of 0.7-4.5X

1X continuous zoom HD lens with zoom ratio of 0.7-4.5x

FOV

2-14.5MM

1.5-10MM

Magnification

6-60X

12-120X

Working distance

90MM

Focusing system

Hand rotation vertical up and down adjustment, horizontal up and down adjustment, left and right adjustment.

Focusing system

Hand rotation vertical up and down adjustment, horizontal up and down adjustment, left and right adjustment.

Focusing stroke

50mm

Movement platform

The hand rotation type can adjust the rotation angle, which is suitable for batch positioning observation

Clamping diameter

2-20(MM)

Dimming mode

manual

Light sourse

Customized LED

CAD import

Support

Pattern matching

Support

Monitor

22 inch displays; Up and down or left and right display (selection)

Mouse

USB Optical Mouse 2pc

Fixed base

Aluminum,400mm*300mm*15mm

Compatibility

GigE Vision, GenlCam, GenTL

Input voltage

12V






Accessories



Multifunction Tool Inspection System For Different Shape Cutting Tools 1
           Free angle auxiliary light                                  Contour light module



A dimmable additional light is available on a flexible arm. Which helps the users to get a local enhanced image.

This is movable along the X-axis direction offers the best image and sharp edge of the object views to the user when measuring the contour of the tool.






Multifunction Tool Inspection System For Different Shape Cutting Tools 2
            Base table                                                             Tools holder

Solid standing work station with practical and open-view storage space for storage of materials and tools.


A multiple-section tools holder is embedded at the side of the machine. Users can hold all the tools in order for preparation to avoid confusion.






Features


1. Advanced Design
﹥Ergonomic design and solid construction.
﹥HD image capturing and display combination, also microscope magnification level is optional.
﹥Stable and accurate V block for easy tools holding and alignment.
﹥Mechanical fixed measuring angles of 0 degrees and 90 degrees are available on the rotary stage.
﹥High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
﹥Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
﹥SMARTOOL measuring software offers specific measuring function for cutting tools.
﹥Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.

2. Multiple Angles Measuring
For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc.

Multifunction Tool Inspection System For Different Shape Cutting Tools 3

                0 degree                                                  45 degrees                                           90 degrees
