3 axis Full Manual Vision Measurement Machine For Small Batch Inspection​

Basic Information
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: BASIC
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80sets per month
Detail Information
Model: BASIC Product Name: Full Manual Vision Measuring Systems For Small Batch Inspection
Repeatability: 2.5um Accuracy: 2.5+L/100um
Linear Scale Resolution: 0.5um Measuring Mode: Full Manual
Support: OEM,ODM, Customize Application: Metal, Injection Plastic, Gear, Mobile Phnoe Parts, Etc.
High Light:

Full Manual Vision Measurement Machine

,

3 Axis Vision Measurement Machine

,

OEM Vision Measurement Machine


Product Description

Full Manual Vision Measuring Systems for Small Batch Inspection​





DESCRIBING

Visual Measurement Machine

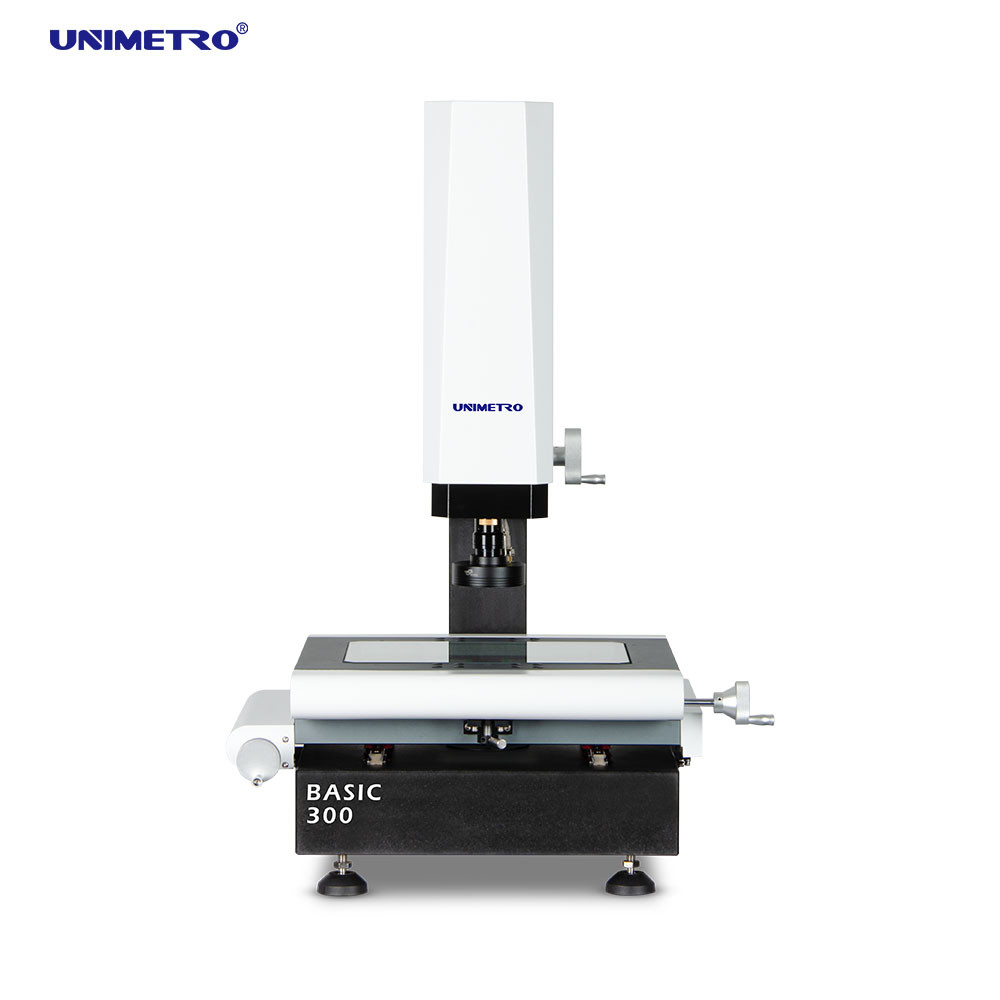

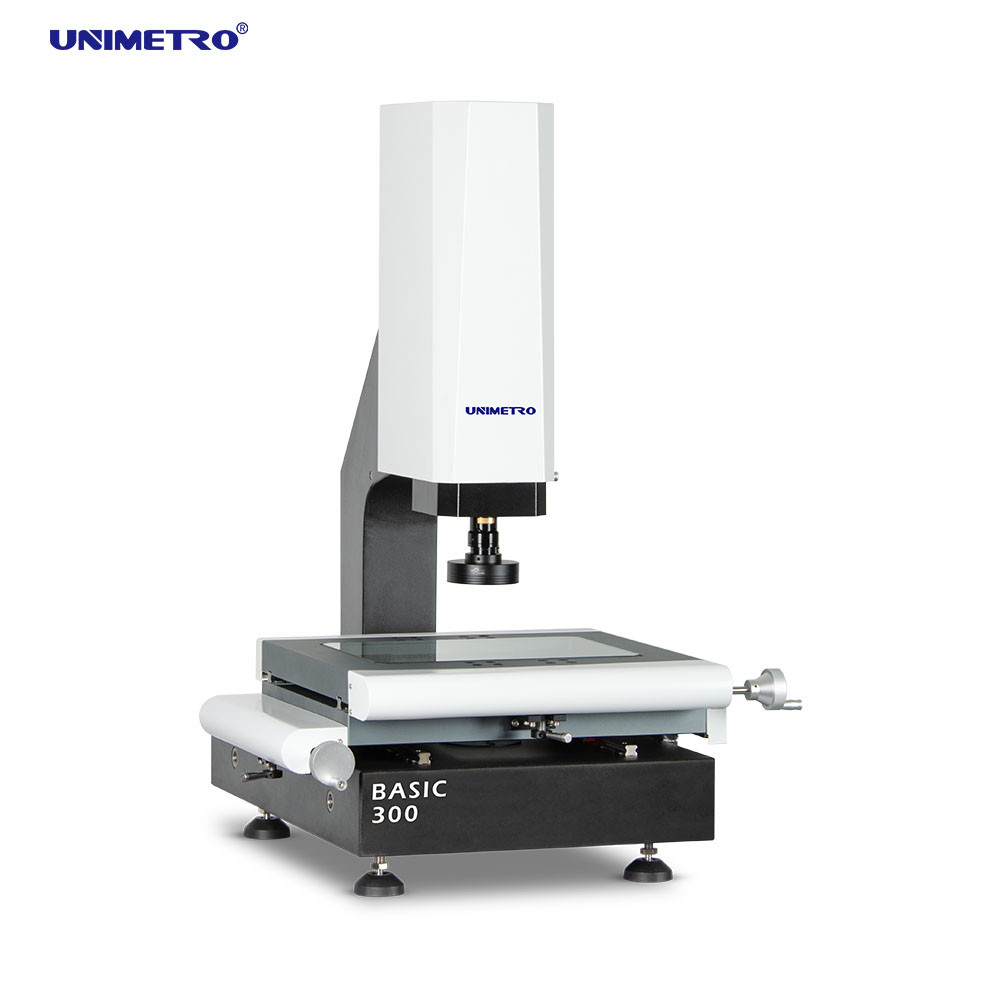

BASIC Series vision measurement machine is designed and developed by UNIMETRO, Which is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user-friendly software, allows the operator to manage using the machine in very short time.





Parameters

Model BASIC 200 BASIC 300 BASIC 400 BASIC 500
Dimension(mm)(L*W*H) 550*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 1.2M pixel HD digital camera
Lens 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 80mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X,Y,Z axis manual control
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option



* L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the
surface of the workpiece.
* Magnification is approximate value, it is related to the dimension of monitor and resolution.
* Field of view(mm) = (diagonal*Horizontal*Vertical)
* 0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.





FEATURES

◆ Quality details control

1. Granite base and column, excellent stability;

2. Aluminum work stage, make the motion control fast reacting and flexible;
3. Work stage with hard oxidation surface processing anti-scratch;
4. Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
5. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
3 axis Full Manual Vision Measurement Machine For Small Batch Inspection​ 1

High performance configuration
1. X, Y, Z three-axis manual control to achieve accurate positioning;
2.0.5um high-precision linear ruler and precision worktable ensure that the accuracy of the machine is ≤ 2.5 + L / 100um;
3. High precision toothless polished rod and fast moving locking device are used to ensure the return error of worktable within 2um;
4. Industrial high-resolution color CCD ensures clear image quality without distortion and meets the needs of clear observation and accurate measurement;
5. 0.7-4.5x manual dented zoom lens with high repeatability

◆ Efficient measurement software
1. BASIC Series vision measurement machine is campatible with multiple option of powerful measuring software. Which are with diversified measuring function, can measure geometric elements such as points, circles, lines, angles, angles, etc., as well as dimensions such as distance, roundness, straightness, concentricity, etc.
2. Simple and easy to understand operation interface makes measurement more simple and efficient;
3. CAD file input and comparing, easy output of measuring report, and SPC analysis of the measuring results data


◆ Flexible expansibility
1. Multi types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
2.Green color button light is available for the BASIC series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
3. Thanks to the flexible expansibility of BASIC series, it is compatible with touch probe, non-contact measuring sensors and robot arm,highly increase the measuring efficiency,
