| Place of Origin: | China |
|---|---|
| Brand Name: | Unimetro |
| Certification: | CE ISO |
| Model Number: | B300 |
| Minimum Order Quantity: | 1set |
| Price: | USD3500-USD5000/set |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Dimension: | 600*740*980 | Measuring Range: | 300*200*200 |
|---|---|---|---|
| Measuring Accuracy: | 2.5+L/100 | Linear Scale Resolution: | 0.5μ（0.1μ Optional） |
| Working Distance: | 80mm | ||
| High Light: | Visual Measurement System 80mm Working,Visual Measurement System Motion Control |
||

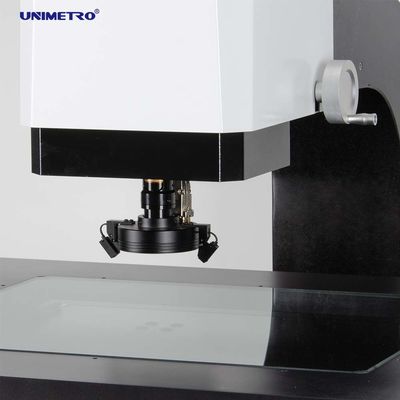

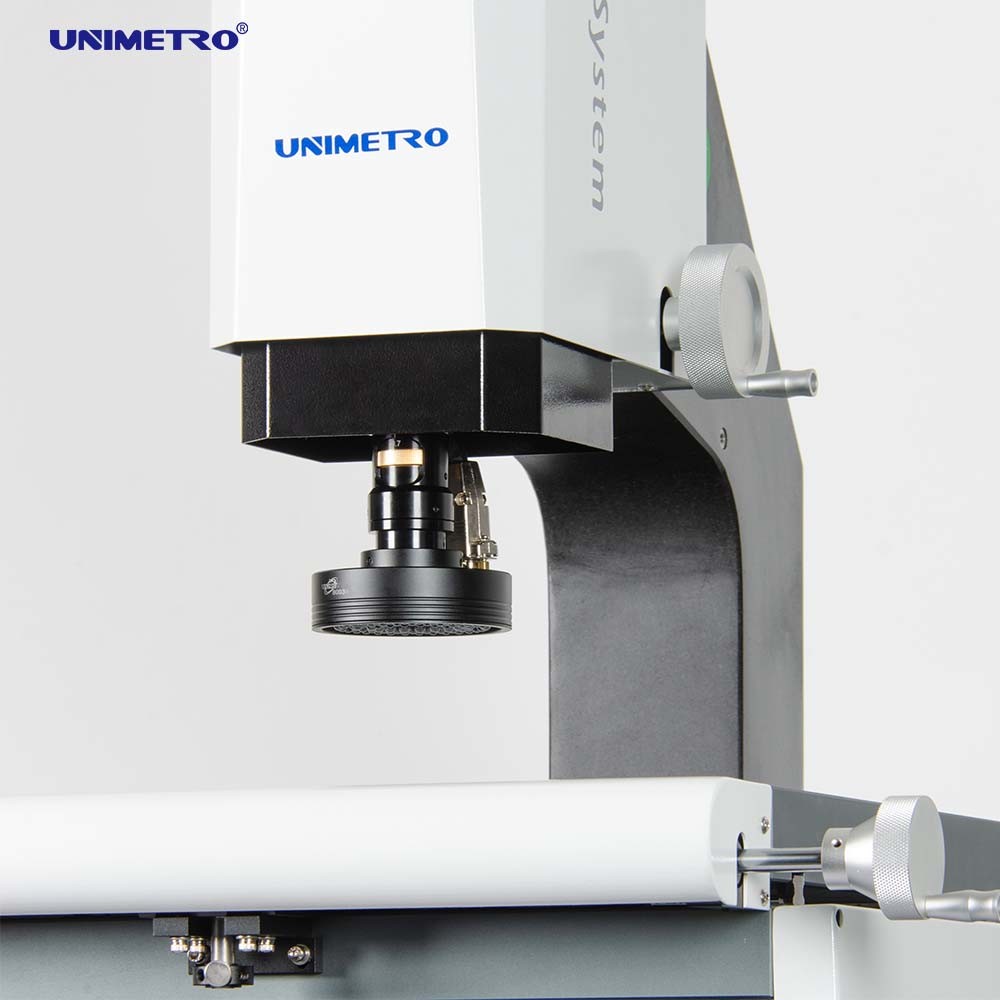

Our led visual measuring machine can be operated as below video shows:
Parameters
| Model | BASIC 200 | BASIC 300 | BASIC 400 | BASIC 500 | |
| Dimension(mm)(L*W*H) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | |
| Measuring range (mm)(X*Y*Z) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | |
| Measuring Accuracy (μm) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 | 3+L/100 | |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 | 3 | |
| Weight (kg) | 140kg | 190kg | 240kg | 290kg | |
| Image and Measuring | CCD | 1.2M pixel HD digital camera | |||
| Lens | 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor | ||||
| Magnification | 18-195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||
| Field of View | 8.1~1.3mm | ||||
| Working distance | 80mm | ||||
| Linear scale resolution | 0.5 μm( 0.1μm for option ) | ||||
| Driving system | X,Y,Z axis manual control | ||||
| Illumination | Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option | ||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
Our led visual measuring machine use the powerful function software.
INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring. The software is offering full English language UI, also allows new language development
◉ Input CAD file and measure
Company Information
Our Client&Agent
| FAQ |
|---|
| Q1: Are you a factory or trading company ? |
| A1: We are a factory and giving you the quickest reply in 24 hours. |
| Q2: What's your company mainly in? |
| A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc. |
| Q3: How to Choose the Appropriate Specification? |
| A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications. |
| Q4: Do you accept customized service? |
| A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs. |
| Q5: What is your warranty period? |
| A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality. |
