Flexible Expansibility CNC Video Measuring Systems VMS For Laboratory Site Testing

Basic Information
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: ULTRA
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 8-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets per month
Detail Information
Model: ULTRA Product Name: CNC Video Measuring Systems
Repeatability: 2.5um Accuracy: 2.5+L/200um
Linear Scale Resolution: 0.1um Measuring Mode: Fully Automatic
Support: OEM,ODM, Customize Application Scenery: Laboratory/Industrial
Warranty: 12 Months Optional Accessories: Renishaw Probe/ Laser Probe, Etc.
High Light:

Flexible Expansibility CNC Video Measuring Systems

,

CNC Video Measuring Systems VMS

,

ODM CNC Video Measuring Systems


Product Description

CNC Video Measuring Systems VMS For Laboratory Site Testing





PRODUCT OVERVIEW:

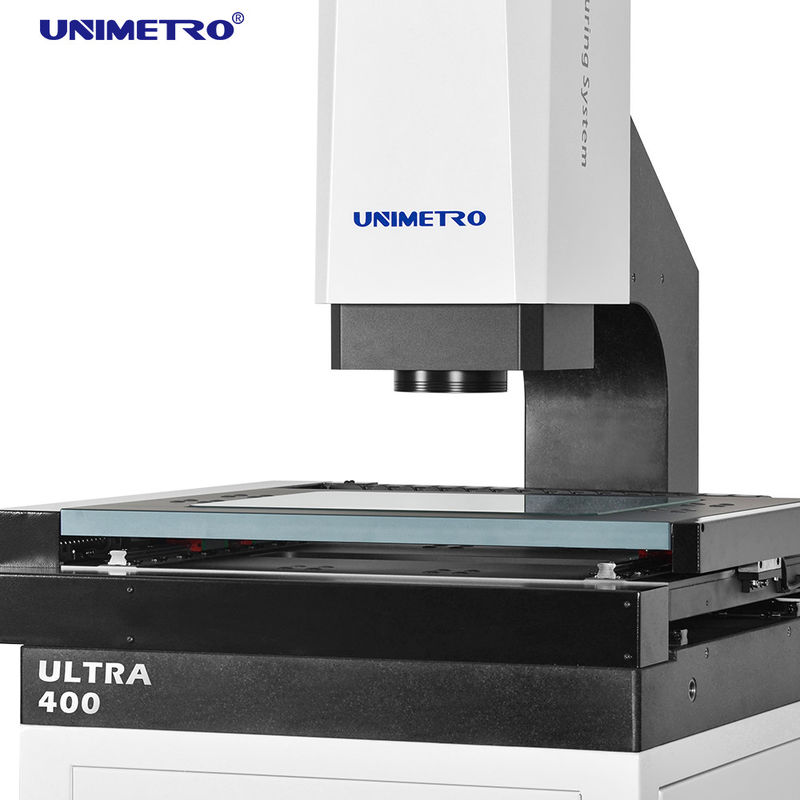

ULTRA series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.





Flexible Expansibility CNC Video Measuring Systems VMS For Laboratory Site Testing 0







SPECIFICATIONS

Model

ULTRA 300

ULTRA 400

ULTRA 500

ULTRA 600

X/Y-axis Travel(mm)

300x200

400x300

500x400

600x500

Z-axis Travel

200mm (can be raised according to the requirements of customers)

X/Y/Z-3 axis Linear Scale

Glass Linear Scale Resolution: 0.1um

Guidance Mode

Precision linear guide,double-track double slider guide.

Operation Mode

Joystick controller, Mouse operation, automatic detection program.

Accuracy

XYZ-axis:≤2.5+L/200um

Repeatability

±2.5um

Video system

CCD

High definition 1/3" Color CCD Camera

Lens

6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor)

Illumination system

Contour

LED parallel contour illumination

Surface

0~255 Stepless adjustable 5-ring 8-division LED surface illumination

Magnification

0.7X~4.5X

Measuring Software

UNIMETRO 2D Fully Auto Measuring Software

Load Capacity

±2.5um

Working Environment

25Kg

Power Supply

Temperature 20℃±2℃,Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz

Ddimension(W*D*H)(mm)

220V/50Hz/10A

Ddimension(W*D*H)(mm)

1600*780*1700

1750*920*1700

1900x1080x1700

1050*1280*1700

Net Weight(kg)

380

450

600

800













FEATURES

◆ Quality details control


1. Granite base and column, excellent stability;

2. Aluminum work stage, make the motion control fast reacting and flexible;
3. Work stage with hard oxidation surface processing anti-scratch;
4. Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
5. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.

◆ High-performance configuration

1. XYZ three-axis CNC automatic control and accurate positioning;
2. 0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
3. GIGA high-resolution color camera to meet the needs of clear observation and accurate measurement;
4. 6.5x high-resolution click zoom lens, accurate doubling and one-time pixel correction only needed;
5.With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.

◆ Efficient measurement software

1. With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
2. Simple and easy to understand operation interface makes measurement more simple and efficient;
3.Automatic measurement program can be set to complete batch measurement efficiently and quickly.

◆ Flexible expansibility
1.Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers
2. Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
3.Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe, non-contact measuring sensors and robot arm, highly increase the measuring efficiency,
