Integrated Body Digital Video Microscope With Measurement Function

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: FOCAL
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Case
Delivery Time: 5~10days
Payment Terms: L/C, T/T
Supply Ability: 100
Detail Information
Product Name: Video Microscope Lens Magnification: 0.7、1.0、1.5、2.0.、3.0、4.0、4.5X
Lens Working Distance: 80mm CCD Lens Interface: C Type
CCD Effective Pixel: 500W Pixel Image Sensor: CMOS Color / Black And White
Color: Color / Black And White Field: 2.5mm-22mm
High Light:

Integrated Body Digital Video Microscope

,

500W pixel Digital Video Microscope

,

ISO Digital Video Microscope


Product Description

High Quality Auto Focus Video Microscope With Measurement Function



Introduction

Video microscope, also known as digital microscope, can observe samples from a new angle on the display without eyepiece, and can display and save high-quality full-color still images and dynamic high-definition films.

UNIMETRO video microscope adopts integrated body design, and a full set of optical system is independently developed. It has the functions of light source switching, continuous zoom, automatic focusing, precision measurement, etc.



Practical Functions

UNIMETRO video microscope has built-in image measurement software, which can easily take pictures, record videos, compare images, display images, measure crosshairs, mark, save and export data without computer; it can measure points, lines, circles, arcs and their related parameters, such as spacing, angle, radian, etc; it also has automatic edge finding, local amplification, exposure, color and other auxiliary adjustment tools, which makes the measurement more convenient and intuitive.

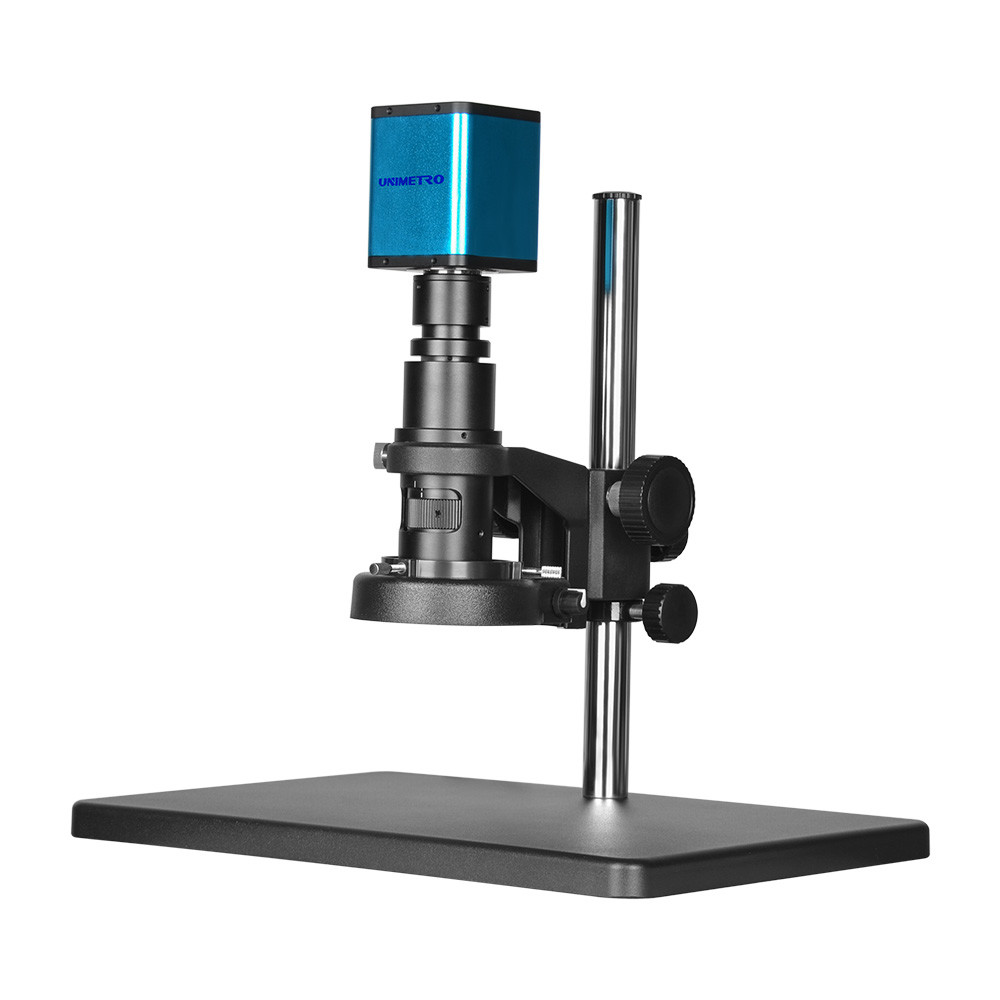

Integrated Body Digital Video Microscope With Measurement Function 0



Video Microscope Characteristic

UNIMETRO video microscope has built-in HDMI high-definition output interface and external U disk to meet the storage requirements of image and video; USB interface can be connected with mouse to make the operation more convenient. This product is widely used in industrial testing, medical observation, teaching and scientific research, automation system and other fields, with clear imaging, strong three-dimensional sense, long working distance, wide field of vision and other characteristics, specially designed with a variety of lighting devices, led adjustable ring light source and fluorescent ring light source. Without external computer host, directly connect CCD and HDMI high-definition display, greatly saving space.



Parameter

Lens

Magnification

0.7,1.0,1.5,2.0.,3.0,4.0,4.5X

Working distance

80mm

Bracket

Lifting range

40mm

Base size

380*260mm

Column height

300mm

Camera

Lens interface

C type

Shutter speed

1/50s(1/60s)~1/10000s

Effective pixel

500W pixel

OSD

Full digital UI design / mouse operation

Output mode

HDMI

Image sensor

CMOS color / black and white

Storage mode

U disk storage / photo taking / video recording / measurement

Color

Color / black and white

Frame rate

1080P@60fps/1080P@50fps

Target size

1/2.8〞

Crosshairs

4 movable lines in horizontal and vertical directions respectively

Measurement function

Distance measurement of point, line, rectangle, circle, arc, polygon, circle, ruler distance, point to line, line to line, angle automatic edge searching, etc

Total magnification

About 30-200 times adjustable (with 21 inch monitor)

Field

2.5mm-22mm



Video Microscope Application--PCB



Integrated Body Digital Video Microscope With Measurement Function 1





Company Information


Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine

Our Client&Agent

Visual Measurement Machine
Visual Measurement Machine
FAQ
Visual Measurement Machine  Q1: Are you a factory or trading company ?
Visual Measurement Machine  A1: We are a factory and giving you the quickest reply in 24 hours.
Visual Measurement Machine  Q2: What's your company mainly in?
Visual Measurement Machine  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Visual Measurement Machine  Q3: How to Choose the Appropriate Specification?
Visual Measurement Machine  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Visual Measurement Machine  Q4: Do you accept customized service?
Visual Measurement Machine  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Visual Measurement Machine  Q5: What is your warranty period?
Visual Measurement Machine  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
