Mould Test Visual Measurement System Automatic Measuring CNC Driven

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: HE
Minimum Order Quantity: 1
Packaging Details: Wooden Case
Delivery Time: 20~25days
Payment Terms: L/C, T/T
Supply Ability: 10
Detail Information
Product Name: Visual Measurement Systems Dimension: 1900*1480*1750mm
Measuring Range: 800*1000*200mm Measuring Accuracy: 3+L/200um
Repeatability: 3um Linear Scale Resolution: 0.1um/0.5um
Driving System: CNC Control Illumination: 5-ring,8-zoom
High Light:

Mould Test Visual Measurement System

,

CNC Driven Visual Measurement System

,

ISO Visual Measurement System


Product Description

Mould Test Visual Measurement Systems Automatic Meausring

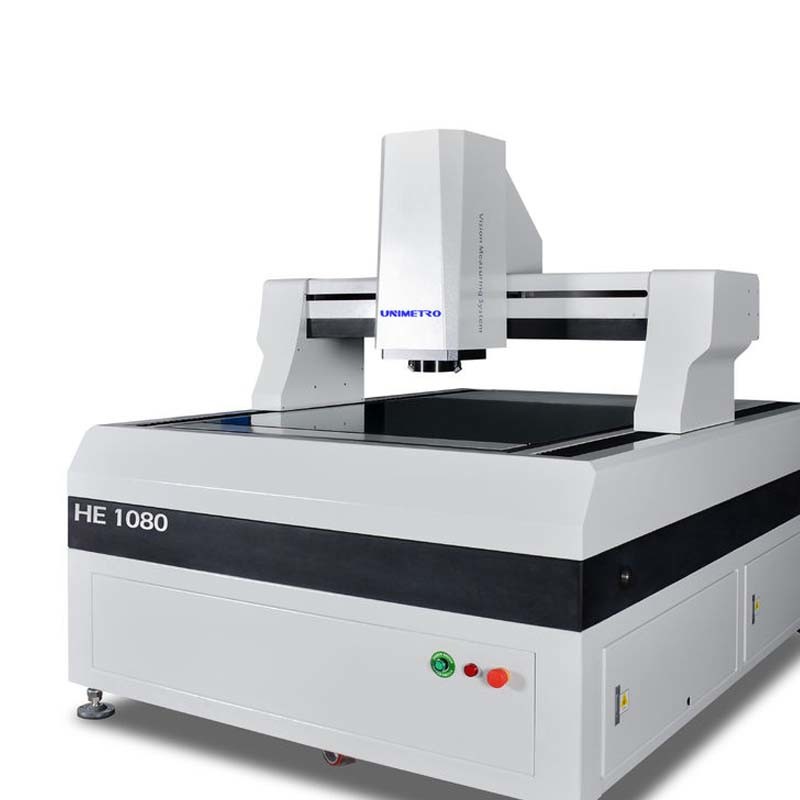

The HE series high accuracy gantry type Visual Measurement Systems combines high accuracy and high efficiency,offers high speed measuring for the geometric,elements,of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate,pad glass,LCD modules,and insulation materials etc.

Finite elements analysis is introduced in the designing process of the HE series,ensure high rigidity and accurate mechanical structure.The machine base is using closed frame movable bridge type structure,which is simple and offers high loading capability and the best motion performance.





Features

>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;
>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;





Parameters

Model

HE 652

HE862

HE1080

HE1210

HE1512

HE1812

X,Y Travel(mm)

500*600

600*800

800*1000

1000*1200

1200*1500

1200*1800

Z-axis Travel(mm)

200(can be raised according to the requirements of customers)

Load Capacity

approx. 35 kg

Dimension (mm)

1700*1180*1750

1700*1280*1750

1900*1480*1750

2100*1680*1750

2500*1880*1750

2700*1880*1750

Weight(kg)

1500

1800

2900

3200

4400

4800

Resolution

0.5μm(0.1um for option)

Camera

2M HD GIGA digital camera

Zoom Lens

professional auto zoom lens Zoom lens magnification: 1~10X

Video Magnification

18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)

FOV

8.1~1.3mm (According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data)

Accuracy*

≤ (3+L/200)μm

Illumination

Programmable 5-ring 8 sections LED surface illumination (40 sections ring light,Co-axial light,movable multi color ring light for option)
