High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

    • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw
    • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw
    • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw
    • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw
    • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw
  • High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

    Product Details:

    Place of Origin: CHINA
    Brand Name: UNIMETRO
    Model Number: SP2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: wood case
    Payment Terms: T/T
    Supply Ability: 15set per month
    Contact Now
    Detailed Product Description
    Sensor: Php Series Low Noise Digital Profile Sensor Software: CAS Profile Measurement And Analysis System
    Applicant: Gear,Pulley,Screw,Helical Gear,etc







    Surface Roughness Tester Contour Measuring System Roughness And Contour Measuring machine



    Contour Tester High Quality profile Measuring Machine Profile measurement profilometer mechine



    Product Description

    Roughness profile measurement analysis basis

    The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
    ◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
    ◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
    ◆ Roughness: caused by factors such as cutting tools or machining processes
    ◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process







    SP2000 Series

    Features: the best balance of performance and cost, with the best price/performance ratio

    ★ High precision digital contour sensor.
    ★ Large-scale high-precision contour measurement, micro-profile measurement.
    ★ UNIMETRO innovatively uses a new type of digital sensor that delivers up to five times better linear accuracy than traditional digital encoder sensors and up to 10 times the ability to measure small contours!
    ★ This measure enables the new SP2000 series profiler to meet the requirements of large-scale measurement while also evaluating the small contour of the surface of the part. Typical applications include deep groove ball bearings, peach dog bearings, and ball screw grooves. Measurement of the R value, configuration deviation, and Pt value.



    Measuring Case



       High Precision Digital Contour Testing Machine For Gear / Pulley / Screw High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

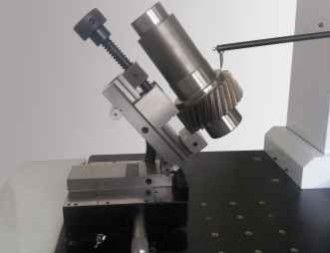

                                       Gear                                                           Pulley



       High Precision Digital Contour Testing Machine For Gear / Pulley / Screw High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

                                  Screw                                                    Helical gear



    Recommended Size



    Specification number
    SP2012G-tdo

    Measuring range
    X-axis
    120mm
    Z-axis
    420mm
    Z1-axis
    ±12.5mm


    Accuracy
    Z1 Linear precision¹
    ±(0.8+|0.15H|)µm
    Arc
    ±(1.5+R/12)µm
    angle
    ±1´
    Straightness
    0.5µm/100mm

    Drive speed
    X-axis
    0.05~20mm/s
    Z-axis
    0.2-20mm/s


    Measurement function


    Profile
    Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis



    System Components



    Sensor:Php Series Low Noise Digital Profile Sensor

    High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

    ● Resolution: 0.02-0.1µm
    ● Range: ±7.5-±30µm
    ● Linear Precision: ±(0.7+|0.05H|)µm
    ● Measuring power: 0.7kg
    ● Feature description:Very low bulk noise can still measure micro-profile in large range, and it has excellent linearity.





    Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

    High Precision Digital Contour Testing Machine For Gear / Pulley / Screw

    ● Rail travel:100-150mm/180~220mm
    ● Number interval: 0.05~2µm/0.05~5µm
    ● Contour straightness:0.3µm/100mm
    ● Roughness residual value:≤0.005µm
    ● Maximum moving speed:20mm/s
    ● Minimum measurement speed:0.1mm/s
    ● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.



    Column member: Cnf High Speed Column / Cnfl High Speed Long Column

    (Can choose according to your needs)



    ● Range:320~420mm / 520~620mm
    ● Maximum moving speed:20mm/s
    ● Minimum moving speed:0.2mm/s
    ● Positioning accuracy:0.005mm
    ● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy



    Platform components: Mpe Integral Ergonomic Machine Table



    ● Material:marble
    ● Specification:500*800,500*1000
    ● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.



    About us

    UNIMETRO helps you to build your own business!
    UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.



    Our service

    UNIMETRO is devoting to offer the best metrology products and solution,also offer the best after sales service.Free on-line support, free software upgrade and fast reaction of after salesservice ensure the satisfaction of our customers and dealers.

    Global market

    Dealers or distributors all over the world are welcome and we will offer fullsupport in commercial and technical phase.UNIMETRO is always providing products with the best price performance ratio and the best service.

    OEM and special measuring solution

    UNIMETRO is available for OEM service for our distributors.

    Thanks to the professional technical team of UNIMETRO, we are also capable for varies kinds of special measuring solution or devices development, please consult to our engineer if you have such kind of requirement.
