    Product Details:

    Place of Origin: CHINA
    Brand Name: UNIMETRO
    Model Number: SP1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: wood case
    Payment Terms: T/T
    Supply Ability: 15set per month
    Contact Now
    Detailed Product Description
    Sensor: Digital Contour Sensor Software: CMS Contour Measuring Software
    Applicant: Engine Oil Ring,Piston Grinding Tool,Bearing,Axial Core....



    Digital Type Contour Measuring Machine



    Digital Type Contour Measuring Machine profiler measurement profilometer machine





    Product Description



    Roughness profile measurement analysis basis



    The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.

    ◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
    ◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
    ◆ Roughness: caused by factors such as cutting tools or machining processes
    ◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process





    SP1000 Series



    Features:

    standard type, low cost of use,Digital contour sensor,Large-scale profilometry

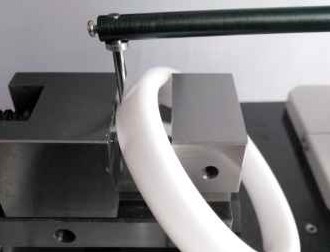

    Measuring Case





      CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment

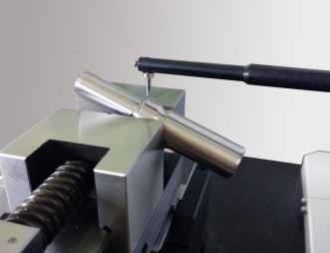

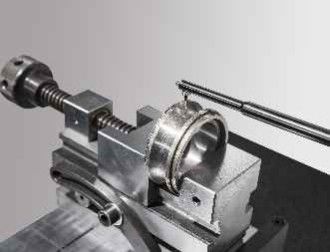

                           Engine oil ring                                         Piston grinding tool





      CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment

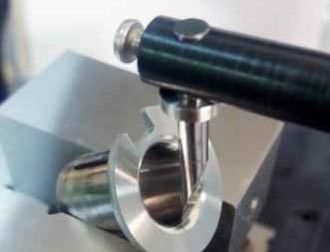

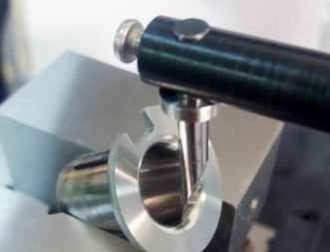

                                     Bearing                                                     Axial core









    Recommended Size



    Specification number
    SP1103G-sbk

    Measuring range
    X-axis
    100mm
    Z-axis
    320mm
    Z1-axis
    ±7.5mm


    Accuracy
    Z1 Linear precision¹
    ±(1.5+|0.2H|)µm
    Arc
    ±(2+R/8)µm
    angle
    ±2´
    Straightness
    0.8µm/100mm

    Drive speed
    X-axis
    0.1~10mm/s
    Z-axis
    0.5-10mm/s


    Measurement function


    Profile
    Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis











    System Components



    Sensor:P series digital contour sensor



       CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment
    ● Resolution ratio: 65536:1 / 262144:1


    ● Range: R:±400µm/±600µm/,C:±5mm/±7.5mm


    ● Linear precision: R:±7%/±4%,C:0.15%/0.07%


    ● Residual noise:≤0.025µm/≤0.02µm



    ● Roughness referance:Guideway, no guide


    ● Feature description:High-precision integrated inductance sensor can realize not only roughness measurement but also profile measurement. The switch of roughness and profile measurement function can be realized only by changing the measuring needle.







    Driver: DS standard driver / Dc ceramic driver(Can choose according to your needs)



    CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment

    ● Rail travel:100-150mm


    ● Number interval: 0.2~2µm


    ● Contour straightness:0.5µm/100mm


    ● Roughness residual value:≤0.02µm


    ● Maximum moving speed:10mm/s


    ● Minimum measurement speed:0.1mm/s


    ● Feature description:Standard drive, performance can meet the requirements of part-level contour measurement accuracy, with roughness sensor can meet the measurement needs of Ra greater than 0.1 microns







    Column member: Cns standard type column / Cnsl standard type long column

    (Can choose according to your needs)



    CMS Contour Measuring Machine / Profile Measurement Profilometer Equipment



    ● Range:320~420mm / 520~620mm


    ● Maximum moving speed:10mm/s


    ● Minimum moving speed:0.5mm/s


    ● Positioning accuracy:0.01mm


    ● Feature description:Lightweight design, frame-type column, long-term use without deformation







    Platform components: Mpm integrated standard machine







    ● Material:marble


    ● Specification:500*800,500*1000


    ● Feature description:One-piece design, compact structure, easy maintenance and saving
